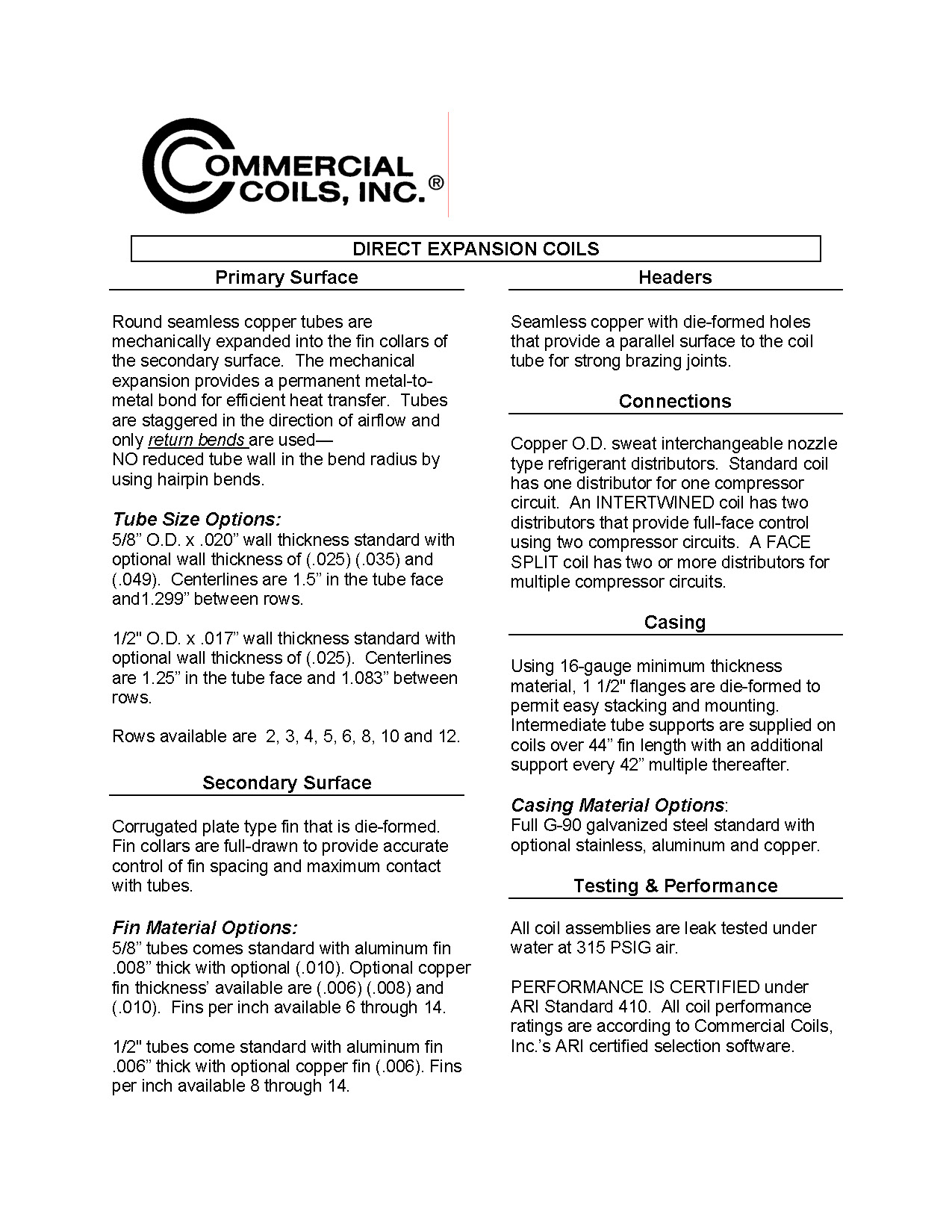

Our direct expansion (DX) coils are crafted to deliver efficient, reliable cooling in HVAC systems. These coils are designed for precise temperature regulation and are ideal for applications that require accurate cooling control.
Round seamless copper tubes are mechanically expanded into the fin collars of the secondary surface. The mechanical expansion provides a permanent metal-to-metal bond for efficient heat transfer. Tubes are staggered in the direction of airflow and only return bends are used – NO reduced tube wall in the bend radius by using hairpin bends.
We have over 20 different surfaces available. Please contact us if construction other than what is above is needed.
Corrugated plate type fin that is die-formed. Fin collars are full-drawn to provide accurate control of fin spacing and maximum contact with tubes.
Contact us for availability of other patterns, fin materials, and/or thicknesses.
Seamless copper with die-formed holes that provide a parallel surface to the coil tube for strong brazing joints.
Copper O.D. sweat interchangeable nozzle type refrigerant distributors. Standard coil has one distributor for one compressor circuit. An INTERTWINED coil has two distributors that provide full-face control using two compressor circuits. A FACE SPLIT coil has two or more distributors for multiple compressor circuits.
Using 16-gauge minimum thickness material, 1 1/2″ flanges are die-formed to permit easy stacking and mounting. Intermediate tube supports are supplied on coils over 44″ fin length with an additional support every 42″ multiple thereafter.
Full G-90 galvanized steel standard with optional stainless, aluminum and copper.
All coil assemblies are leak tested under water at 315 PSIG air. Standard construction is suitable for 250 PSIG and up to 300 degrees F.
PERFORMANCE IS CERTIFIED under ARI Standard 410. All coil performance ratings are according to Commercial Coils, Inc.’s ARI certified selection software.
